Background
This package provides an R-implementation and extension of the simple water balance model Berlin ABIMO 3.2, which was originally developed by the Federal Institute of Hydrology (Bundesanstalt für Gewässerkunde) for rural areas and later adapted for urban areas, namely for Berlin, Germany. In May 2022, the source code of the model was published on the developer platform GitHub (https://github.com/umweltatlas/abimo).
During the research project AMAREX (an acronym for the German translation of “adaptation of stormwater management to extreme events”), funded by the former German Federal Ministry of Education and Research (Bundesministerium für Bildung und Forschung – BMBF), we, the package authors from Kompetenzzentrum Wasser Berlin gGmbH (KWB) started to work on the original program code, written in the programming language C++ (https://github.com/KWB-R/abimo). We then decided to transfer the model to the programming language R, to rename it to R-Abimo (see e.g. here) and to publish it in the form of this R package kwb.rabimo. Compared to the original model, R-Abimo is more generic (i.e. can be more easily adapted to other cities than Berlin) and it contains some additional features:
- simulation of stormwater management measures (green roofs, swales),
- “conversion” of urban areas to “natural” areas,
- calculation of delta-W, an indicator for the deviation between the urban (status quo) state and an assumed “natural” state.
Prerequisites
To use the package, you need to have R installed in a version >= 4.3.1. You can download the current version of R from here.
Installation
In order to install kwb.rabimo directly from our GitHub account KWB-R, we recommend to install the R package remotes first:
# Install package "remotes" from CRAN
install.packages("remotes")You can then install kwb.rabimo in the latest “official” version:
# Install package "kwb.rabimo" (latest "release") from GitHub
remotes::install_github("KWB-R/kwb.rabimo", build_vignettes = TRUE)By setting build_vignettes = TRUE you make sure that
this tutorial vignette is installed together with the package.
Usage
Provide input data and configuration for Berlin
Compared to the original C++ version of Abimo we have modified the structures of input data, output data and configuration. For Berlin, Germany, we provide data in the new structures in the package:
# Load Berlin data in the original Abimo format
abimo_inputs <- kwb.rabimo::rabimo_inputs_2025The object abimo_inputs is a list with two elements:
-
abimo_inputs$datais a data frame containing the actual input data. Each row represents a block area and each column represents a block area’s property. -
abimo_inputs$configis a list of parameters that configure the calculation of runoff and evapotranspiration, respectively, and the infiltration swale model.
Please refer to the help page of rabimo_inputs_2025 for
further information on the different input columns and model
parameters.
To open the help page, run
?kwb.rabimo::rabimo_inputs_2025In addition to the short descriptions given on the help page you may refer
- to the description of the original ABIMO model approaches given by Berlin’s Senate Department for Urban Development, Building and Housing (in German) or
- to the original ABIMO user manual (in German).
Note: We provide also an object
rabimo_inputs_2020, that refers to an older version of the
Berlin data set. It can be used in almost the same way as
rabimo_inputs_2025. However, this old version does not
contain geographical information and we do not cover it within this
tutorial.
Inspect the input data
You may inspect the first rows (and only the most relevant columns) of the input data with
head(as.data.frame(abimo_inputs$data)[, 1:24])
#> code prec_yr prec_s epot_yr epot_s district total_area roof
#> 1 0100980011000100 608 324 666 509 1 4623.972 0.3243243
#> 2 0100980011000200 607 324 666 509 1 13430.944 0.0004668
#> 3 0100980011000300 607 324 666 509 1 5603.764 0.3893303
#> 4 0100980021000200 609 324 666 509 1 34344.730 0.4511181
#> 5 0100980021000300 608 324 666 509 1 48930.206 0.4155595
#> 6 0100980021000400 609 324 666 509 1 13977.561 0.0939597
#> green_roof swg_roof pvd swg_pvd srf1_pvd srf2_pvd srf3_pvd srf4_pvd
#> 1 0.0000 0.86 0.3704374 0.50 0.49 0.46 0.03 0.02
#> 2 0.0000 0.70 0.4371382 0.68 0.31 0.53 0.07 0.09
#> 3 0.0939 0.76 0.4414658 0.55 0.20 0.60 0.10 0.10
#> 4 0.2134 0.94 0.3339549 0.75 0.45 0.28 0.13 0.14
#> 5 0.0277 0.73 0.3574335 0.61 0.42 0.38 0.08 0.12
#> 6 0.0000 0.82 0.4508725 0.78 0.31 0.56 0.01 0.12
#> srf5_pvd to_swale gw_dist ufc30 ufc150 land_type veg_class irrigation
#> 1 0 0 5.9 13 10 urban 9.5 0
#> 2 0 0 5.2 11 10 urban 3.6 0
#> 3 0 0 4.5 13 10 urban 1.5 0
#> 4 0 0 5.4 13 10 urban 5.3 0
#> 5 0 0 5.6 12 10 urban 13.2 50
#> 6 0 0 4.5 11 10 urban 2.7 0and you may print the whole configuration object with
abimo_inputs$config
#> $runoff_factors
#> roof surface1 surface2 surface3 surface4 surface5
#> 1.00 0.90 0.70 0.40 0.10 0.48
#>
#> $bagrov_values
#> roof green_roof surface1 surface2 surface3 surface4 surface5
#> 0.05 0.65 0.11 0.11 0.25 0.40 0.25
#>
#> $swale
#> swale_evaporation_factor
#> 0.1Visualise the input data
Since we provide the Berlin dataset together with geographical information we can plot the spatial distribution of a variable (e.g. the annual precipitation) in the form of a map:
# Provide a subset of the data representing a zoom into the centre of Berlin
berlin_zoom <- kwb.rabimo::crop_box(abimo_inputs$data,
xoffset = 0.35,
yoffset = 0.5,
xscale = 0.07,
yscale = 0.07
)
#> Warning: attribute variables are assumed to be spatially constant throughout
#> all geometries

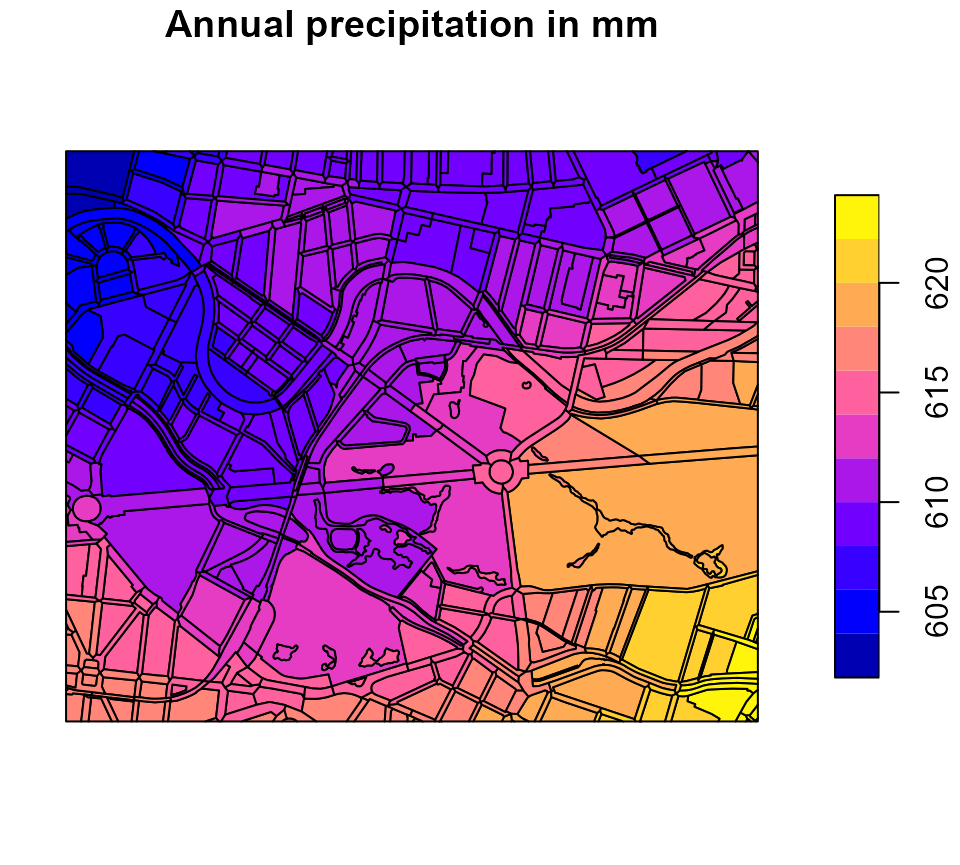

# Plot annual precipitation
plot(berlin_zoom[, "prec_yr"], main = "Annual precipitation in mm")
Run R-Abimo for the status quo (urban state)
To run R-Abimo, call the main function run_rabimo() by
passing both the input data and the configuration object to the
function:
# Run R-Abimo
water_balance_urban <- kwb.rabimo::run_rabimo(
data = berlin_zoom,
config = abimo_inputs$config
)
#> Collecting climate related data ... ok. (0.00 secs)
#> Preparing soil property data for all block areas ... ok. (0.02 secs)
#> Precalculating actual evapotranspirations for impervious areas ... ok. (0.10 secs)
#> Precalculating actual evapotranspirations for waterbodies or pervious areas ... ok. (0.03 secs)
# Have a look at the first lines of the result data frame
head(sf::st_drop_geometry(water_balance_urban))
#> code area runoff infiltr evapor
#> 1 0200010761000000 85207.227 378.040 108.615 116.345
#> 2 0200010901000100 14948.442 0.000 97.119 512.881
#> 3 0200010901000200 8911.477 199.563 171.552 240.885
#> 4 0200010901000300 29381.735 21.930 317.488 272.581
#> 5 0200010941000100 22281.140 285.523 123.478 194.999
#> 6 0200010941000200 8264.302 405.532 75.383 128.085The result data frame contains two columns that are copied from the input data:
-
code- unique identifier of each block area, -
area- the total block area in square metres in column `area
as well as three columns containing the model outputs, namely the water balance components:
-
runoff- surface runoff in mm, -
infiltr- infiltration in mm, and -
evapor- evaporation in mm.
If the model inputs contained geographical information (as in our case) that information is restored in the output so that the model results can be plotted in terms of maps:
# Plot model output "runoff"
plot(water_balance_urban[, "runoff"], main = "Annual runoff in mm")

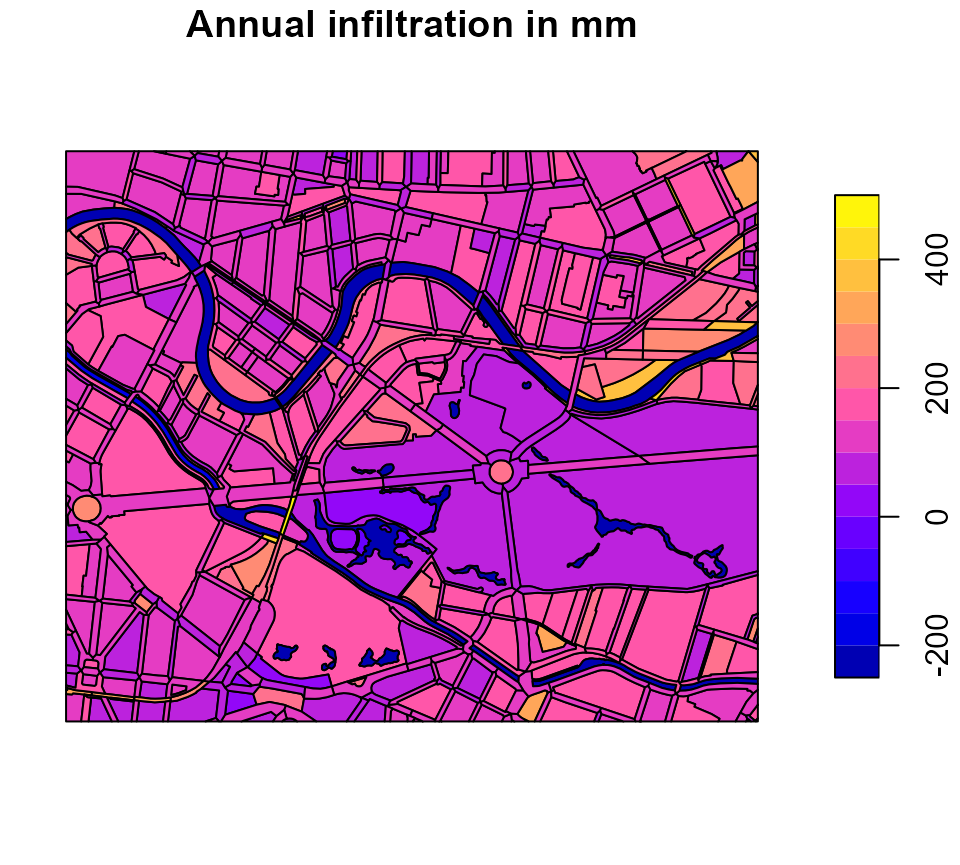

# Plot model output "infiltration"
plot(water_balance_urban[, "infiltr"], main = "Annual infiltration in mm")
# Plot model output "evaporation"
plot(water_balance_urban[, "evapor"], main = "Annual evaporation in mm")
Generate your own block areas
The package provides a function generate_rabimo_area()
to generate block areas in the input format that R-Abimo requires. You
need to pass at least the unique identifier(s) (code) for
the block area(s). If you leave all the other arguments blank, all the
block properties (i.e. columns of the data frame) are filled with
default values. However, you can override the default values by passing
arguments that are named according to the names of the input
columns:
# Generate artificial block areas, using default values and differing only in
# the fractions of the areas that refer to roofs
codes <- paste0("area-", 1:5)
art_blocks <- kwb.rabimo::generate_rabimo_area(
code = codes,
roof = seq(0, 1, length.out = length(codes))
)
# Have a look at the data
art_blocks
#> code prec_yr prec_s epot_yr epot_s district total_area main_frac roof
#> 1 area-1 600 300 700 500 0 100 1 0.00
#> 2 area-2 600 300 700 500 0 100 1 0.25
#> 3 area-3 600 300 700 500 0 100 1 0.50
#> 4 area-4 600 300 700 500 0 100 1 0.75
#> 5 area-5 600 300 700 500 0 100 1 1.00
#> green_roof swg_roof pvd swg_pvd srf1_pvd srf2_pvd srf3_pvd srf4_pvd srf5_pvd
#> 1 0 1 0.6 0.7 0.5 0.2 0.1 0.1 0.1
#> 2 0 1 0.6 0.7 0.5 0.2 0.1 0.1 0.1
#> 3 0 1 0.6 0.7 0.5 0.2 0.1 0.1 0.1
#> 4 0 1 0.6 0.7 0.5 0.2 0.1 0.1 0.1
#> 5 0 1 0.6 0.7 0.5 0.2 0.1 0.1 0.1
#> road_frac pvd_r swg_pvd_r srf1_pvd_r srf2_pvd_r srf3_pvd_r srf4_pvd_r
#> 1 0 0.9 1 0.9 0.1 0 0
#> 2 0 0.9 1 0.9 0.1 0 0
#> 3 0 0.9 1 0.9 0.1 0 0
#> 4 0 0.9 1 0.9 0.1 0 0
#> 5 0 0.9 1 0.9 0.1 0 0
#> to_swale gw_dist ufc30 ufc150 land_type veg_class irrigation
#> 1 0 3 13 13 urban 35 0
#> 2 0 3 13 13 urban 35 0
#> 3 0 3 13 13 urban 35 0
#> 4 0 3 13 13 urban 35 0
#> 5 0 3 13 13 urban 35 0
# Run R-Abimo on the block areas
art_water_balance <- kwb.rabimo::run_rabimo(art_blocks, config = abimo_inputs$config)
#> Collecting climate related data ... ok. (0.00 secs)
#> Preparing soil property data for all block areas ... ok. (0.00 secs)
#> Precalculating actual evapotranspirations for impervious areas ... ok. (0.01 secs)
#> Precalculating actual evapotranspirations for waterbodies or pervious areas ... ok. (0.00 secs)
# How does the roof area influence the runoff?
plot(art_blocks$roof, art_water_balance$runoff)
You may use this function to do some sensitivity analysis of the R-Abimo model.
Compare the urban state with a natural reference state
In the research project AMAREX we propose to use the deviation of the (urban) water balance from its assumed “natural” state as an indicator for the vulnerability of an urban area to climate-related effects (such as heat, flooding, negative impacts on the surface water quality). As a measure of deviation we introduce \(\Delta W\) that is calculated as follows:
\[\Delta W = \frac{1}{2}\space(|e_{nat}-e_{urb}|+|i_{nat}-i_{urb}|+|r_{nat}-r_{urb}|)\space\frac{100\%}{P}\]
with
- \(e_{nat}\) and \(e_{urb}\) = evaporation for the natural and urban state, respectively, in mm,
- \(i_{nat}\) and \(i_{urb}\) = infiltration for the natural and urban state, respectively, in mm,
- \(r_{nat}\) and \(r_{urb}\) = runoff for the natural and urban state, respectively, in mm,
- \(P\) = annual precipitation in mm.
The higher the value of \(\Delta W\) the higher the deviation from the natural water balance, i.e. the area is less similar to a natural area. The lower the value of \(\Delta W\) the lower is the deviation from the natural water balance, i.e. the more similar the urban area is to a natural area.
Our hypothesis is that a lower value of \(\Delta W\) indicates a better preparedness to climate change effects (e.g. because increased evaporation as it occurs in a natural state scenario leads to a reduction of heat).
Run R-Abimo for a natural state scenario
In the package we provide a function data_to_natural()
that converts urban block areas to corresponding “natural” block areas.
The function converts all roof areas and unbuilt paved areas to pervious
areas and assumes an overall vegetation as it can be found in a park (a
mixture of meadows, bushes and trees).
Let’s use this function to simulate the water balance for the
“natural” equivalent of our urban area in the Berlin city centre. In all
following calls to run_rabimo() we will set
silent = TRUE so that console outputs are suppressed.
# Convert urban state to "natural" state
berlin_zoom_natural <- kwb.rabimo::data_to_natural(berlin_zoom)
# Calculate the water balance for the "natural" state
water_balance_natural <- kwb.rabimo::run_rabimo(
data = berlin_zoom_natural,
config = abimo_inputs$config,
silent = TRUE
)Calculate and plot “Delta-W”
Calculate the deviation from the natural state in percent:
delta_w <- kwb.rabimo::calculate_delta_w(
urban = water_balance_urban,
natural = water_balance_natural
)The function claculate_delta_w returns a data frame with
two columns:
-
code- the code of the areas, -
delta_w- the value of \(\Delta W\) in percent.
# Show the first rows of the delta_w data frame (without geometry)
head(sf::st_drop_geometry(delta_w))
#> code delta_w
#> 1 0200010761000000 62.7
#> 2 0200010901000100 15.7
#> 3 0200010901000200 39.6
#> 4 0200010901000300 37.7
#> 5 0200010941000100 47.3
#> 6 0200010941000200 66.6If the water balance results were provided together with their geographical information, the spatial distribution of \(\Delta W\) values can be visualised in a map.
In order to do so, we first define a helper function for plotting Delta-W with a nice colour palette:
# Define function to plot Delta-W
plot_delta_w <- function(data, main) {
palette <- colorRampPalette(c("white", "#a9e0ff", '#7b7bbc', "#350005"))(15)
breaks <- seq(0, 100, length.out = length(palette) + 1)
plot(data[, "delta_w"], main = main, pal = palette, breaks = breaks)
}Now let’s use the function to plot the Delta-W values in a map:

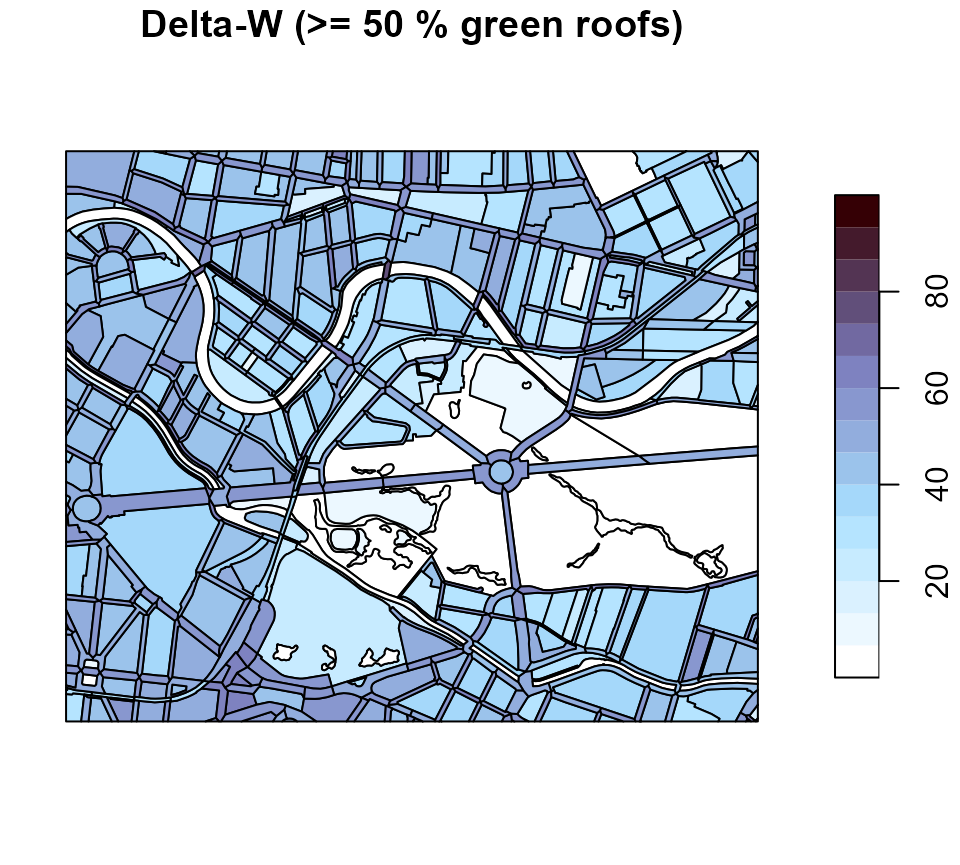

# Plot deviation from natural water balance
plot_delta_w(delta_w, main = "Deviation from natural water balance in %")
Simulate rainwater management measures
R-Abimo currently allows to simulate three rainwater management measures:
- green roofs,
- unsealing of paved areas,
- infiltration swales.
These rainwater management measures are shortly demonstrated in the sections below. In addition to that, the user may also modify the values in the other columns, if desired, in order to calculate the effect these variables have on the water balance.
For example,
- the composition of different pavement types is controlled by the
variables
srf1_pvd,srf2_pvd,srf3_pvd,srf4_pvd, andsrf5_pvd(their sum represents the total paved area and must be equal to 1.0). Each class is assigned a pair of model parameters, runoff factor and Bagrov value, respectively, that are defined in the configuration object (see above). - changing the value of
roof, can be useful to simulate the effect of new buildings or demolitions. - the parameter
veg_classcan be adjusted to test the impact of vegetation on the water balance, keeping in mind that a veg_class of 50 corresponds to a typical urban park with trees, while a value of 75 corresponds to a forested area.
Simulate green roofs
Green roofs increase the evaporation and reduce the runoff. In order
to be able to simulate the effect of green roofs in R-Abimo, we have
introduced a column green_roof to the input data. The
values given in this column refer to the fractions of the roof areas
that refer to green roof areas.
Let’s see how the deviation from the natural state decreases if we introduce more green roofs to our test area in the city centre. We assume that in each block the fraction of roof areas that belong to green roofs is at least 50 percent:
# Make a copy of the original input data
zoom_green_roof <- berlin_zoom
# Target green roof fraction
green_roof_target <- 0.5
# Which blocks need more green roofs?
needs_green_roofs <- zoom_green_roof$green_roof < green_roof_target
# Set the target green roof fraction
zoom_green_roof$green_roof[needs_green_roofs] <- green_roof_target
# Simulate the water balance
water_balance_green_roof <- kwb.rabimo::run_rabimo(
data = zoom_green_roof,
config = abimo_inputs$config,
silent = TRUE
)
# Calculate Delta-W
delta_w_green_roof <- kwb.rabimo::calculate_delta_w(
urban = water_balance_green_roof,
natural = water_balance_natural
)
# Plot Delta-W for the status quo

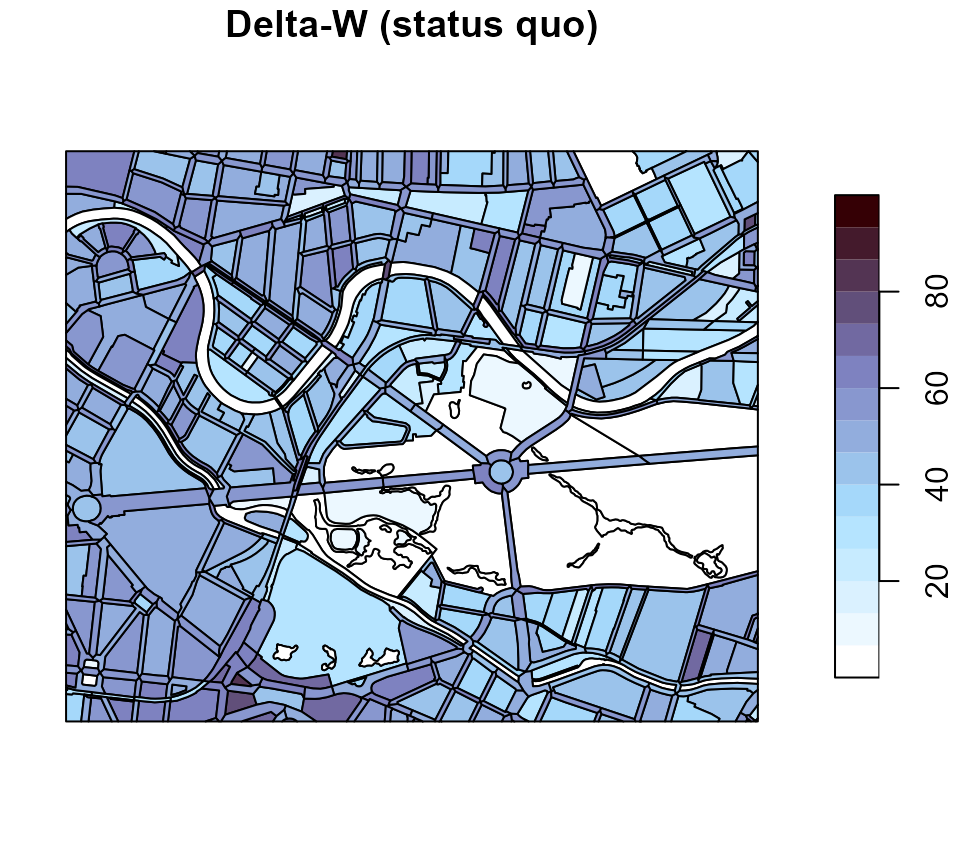

plot_delta_w(delta_w, main = "Delta-W (status quo)")
# Plot Delta-W for the green roof scenario

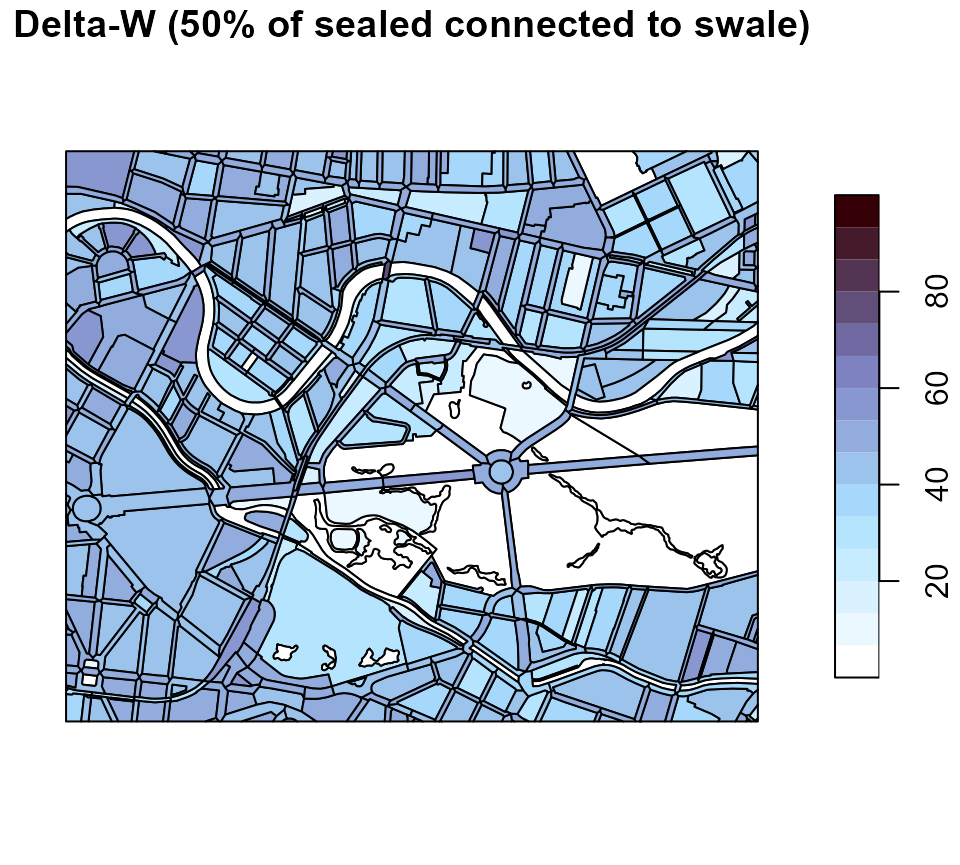

plot_delta_w(delta_w_green_roof, main = "Delta-W (>= 50 % green roofs)")
The colours become brighter referring to lower Delta-W values i.e. more “natural” water balances.
Simulate the unsealing of paved areas
The column pvd refers to the fractions of the total
areas that are paved. In order to simulate that paved areas are unsealed
we decrease the fractions of paved areas by a constant factor, let’s say
we reduce the fractions by 50 percent:
# Make a copy of the original input data
zoom_unsealed <- berlin_zoom
# Reduce the fraction of paved areas by 50 percent
zoom_unsealed$pvd <- zoom_unsealed$pvd * 0.5
# Simulate the water balance
water_balance_unsealed <- kwb.rabimo::run_rabimo(
data = zoom_unsealed,
config = abimo_inputs$config,
silent = TRUE
)
# Calculate Delta-W
delta_w_unsealed <- kwb.rabimo::calculate_delta_w(
urban = water_balance_unsealed,
natural = water_balance_natural
)
# Plot Delta-W for the status quo
plot_delta_w(delta_w, main = "Delta-W (status quo)")
# Plot Delta-W for the green roof scenario
plot_delta_w(delta_w_unsealed, main = "Delta-W (pavement reduced by 50 %)")
We see an effect similar to that of the green roof scenario: colours become brighter referring to smaller Delta-W values.
Simulate infiltration swales
In order to simulate infiltration swales we introduced a column
to_swale to the input data. The values in this column
indicate the fraction of the total sealed area (i.e. roof area + unbuilt
paved area) that is connected to an infiltration swale. The infiltration
model is quite simple: We assume that the infiltration swale works
perfectly, i.e. a small part of the inflow is converted to evaporation
and the remaining part of the inflow is converted to infiltration. The
configuration object contains the swale_evaporation_factor
that determines the fraction of the incoming inflow that is converted to
evaporation.
Let’s (probably unrealistically) assume that in each block we could connect 50 percent of the sealed area to an infiltration swale. How would that change Delta-W?
# Make a copy of the original input data
zoom_swale <- berlin_zoom
# Connect 50 percent of the sealed (= roof + unbuilt paved) areas to swales
zoom_swale$to_swale <- 0.5
# Simulate the water balance
water_balance_swale <- kwb.rabimo::run_rabimo(
data = zoom_swale,
config = abimo_inputs$config,
silent = TRUE
)
# Calculate Delta-W
delta_w_swale <- kwb.rabimo::calculate_delta_w(
urban = water_balance_swale,
natural = water_balance_natural
)
# Plot Delta-W for the status quo
plot_delta_w(delta_w, main = "Delta-W (status quo)")
# Plot Delta-W for the green roof scenario
plot_delta_w(delta_w_swale, main = "Delta-W (50% of sealed connected to swale)")
We let it as an exercise to the user to assess which of the three measures has the biggest impact!
